Shaking Table

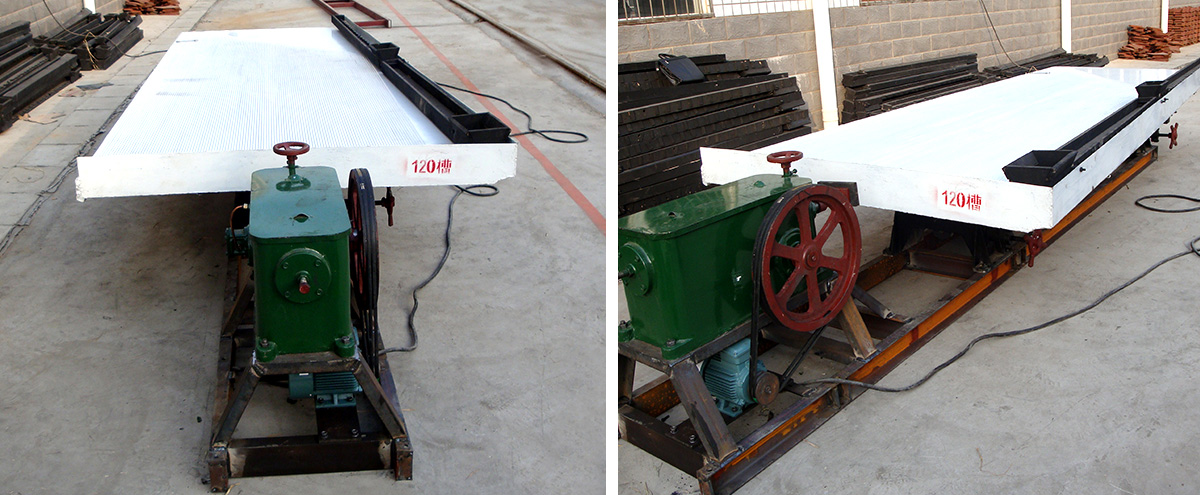

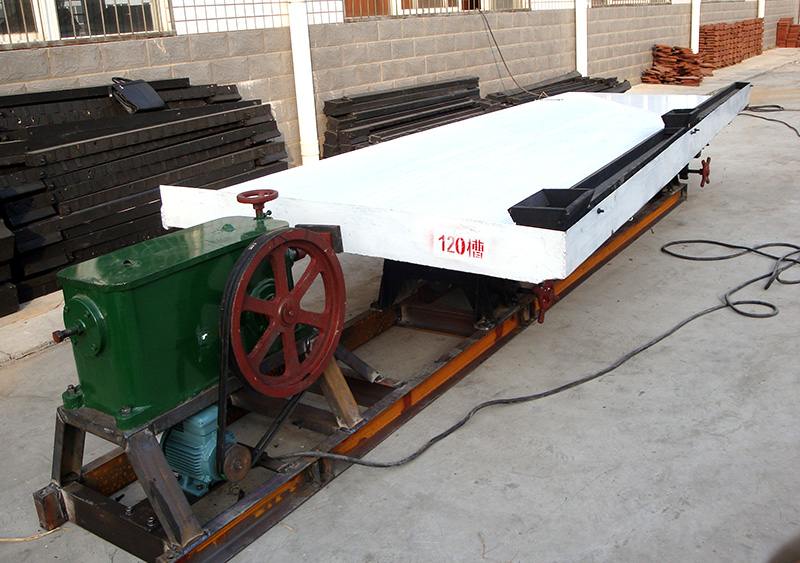

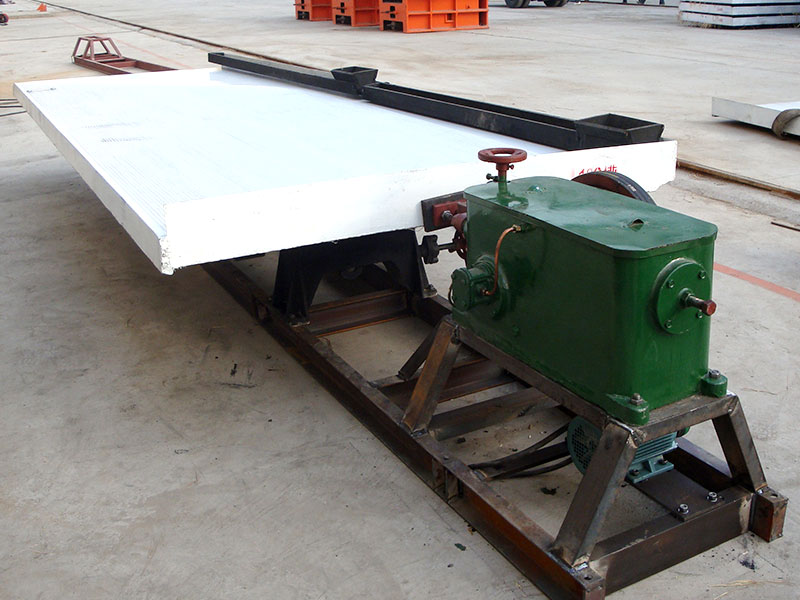

FTM shaking table is one of the main equipment of gravity concentration. It widely applies in the classification of tungsten, tin, tantalum, niobium and other rare metals and precious metals ore and can also be used for classification iron, manganese ore and coal. When dealing with tungsten, tin ore, the table effective recycling granularity scope is 2-0.02 mm. 6-S table enjoy the advantages of high rich ore ratio, high classification efficiency, safeguards easily and easy to adjust stroke.

Working principle:

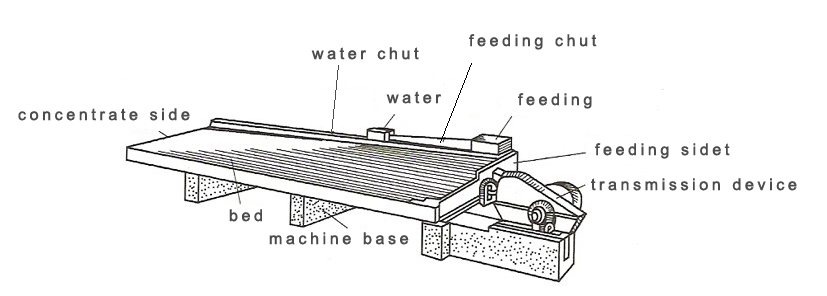

Beneficiation process is in an inclined bed to strip on the surface, the particle swarm was fed into the shaking table from the feeding chut on the corner of the bed. At the same time, the sink will supply the landscape washing water. So the ore pellets layer on the basis of particle size and proportion under the influence of gravity, Horizontal water impact,the reciprocity and friction of the bed are done by reciprocating asymmetric motion. The ore pellets with different particle size and the proportion was running along with their direction of travel from A side to B side fan-shaped shed, and then it will be pulled out from different area of concentrate and tailings discharge end side, finally is divided to concentrate, middlings and tailings.

Technical specifications of shaking table

• 1. Size: 4520 mm long: Feeding end 1850 mm wide; The discharging end width of 1546 mm.
• 2. 8-36 mm, stroke.
• 3. A 245 - 380 times.
• 4. Feed size: 0.02-2 mm.
• 5. The feed concentration: 25-30%.
• 6. Processing capacity: 15-108T.
• 7. The transverse slope adjustment range: 0-10°.
• 8. Water consumption: 19-75 kg / min.

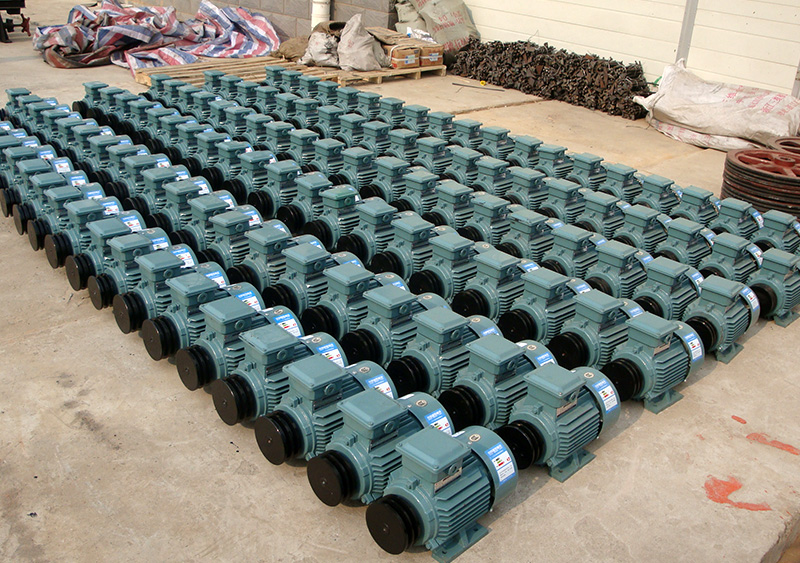

• 9. A motor 1.1 kW; Speed: 1410 rpm.
