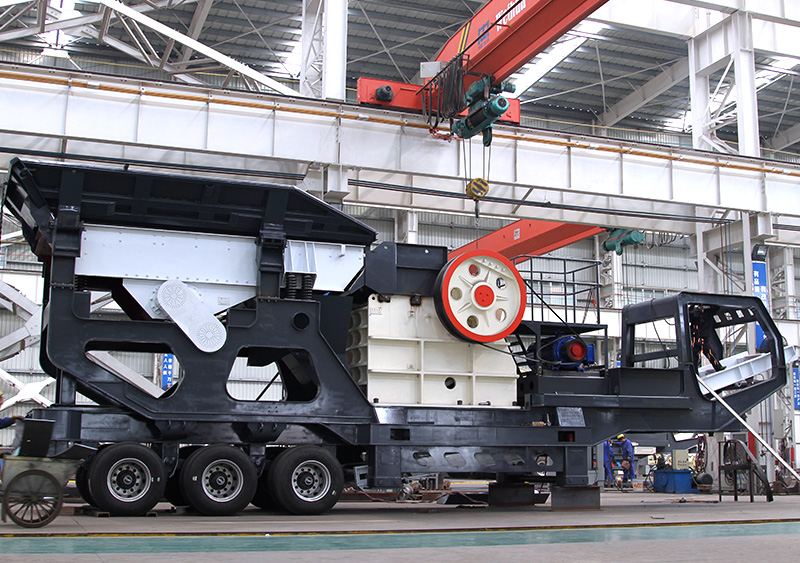

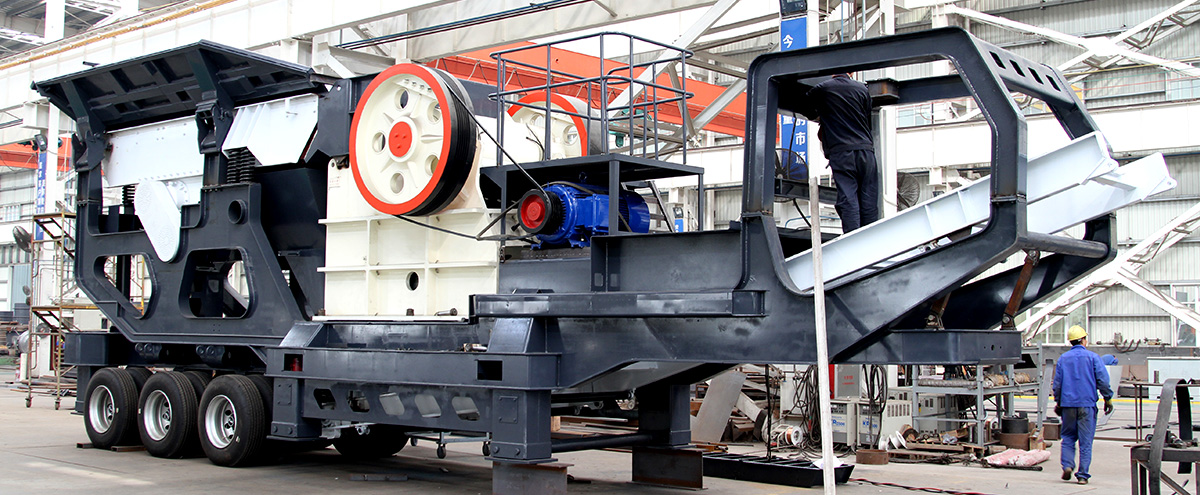

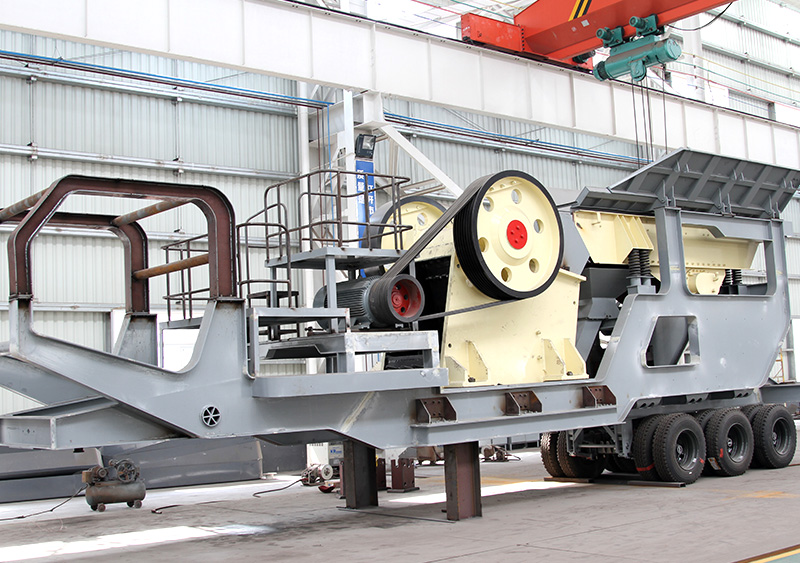

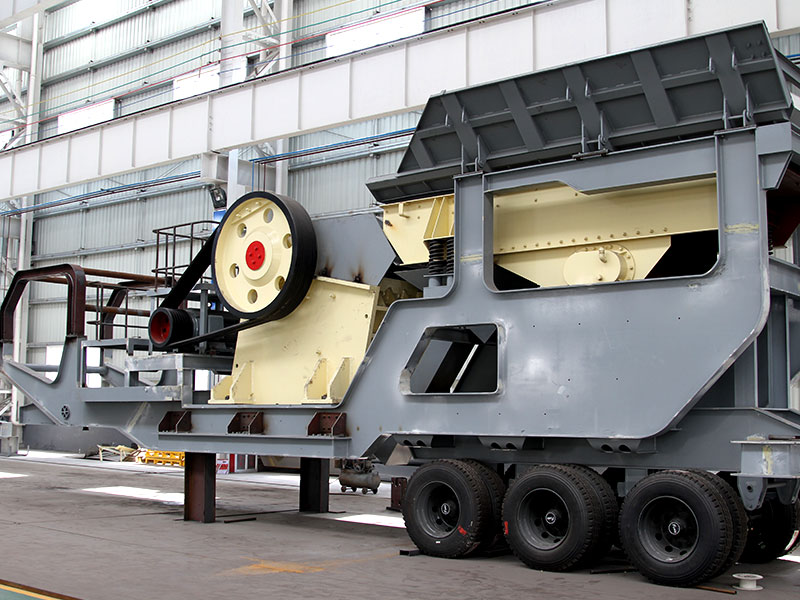

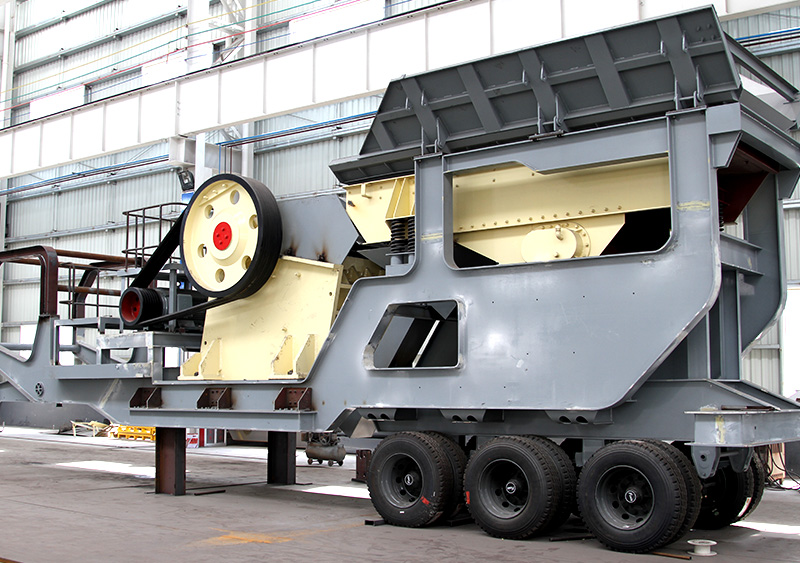

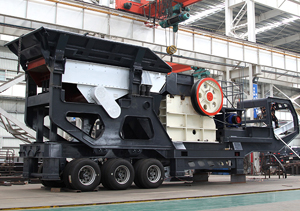

Mobile Jaw Crusher

Flexible configuration

 Convenient transportation

 Integrate operation mode

 Less steel frame and foundation construction

FTM mobile jaw crusher is a kind of rock crushing equipment which has a wide field of application with good prospects. The powerful function of the jaw crusher enhances its functionality greatly. The mobile jaw crusher is mainly used in industry which needs to move frequently such as metallurgy, chemical industry, building materials, hydraulic engineering industry etc. The customers can adopt various kinds of configuration form according to the types of materials, engineering status quo and the finished material with different requirements.Mobile jaw crusher designed by Fote company has the features of all levels of crushing equipment match reasonable, the discharge of whole line process is unobstructed, reliable operation, easy operation, energy-efficient.

Features

Integrate operation mode, reduce the construction of steel frame and foundation, save time; The reasonable space layout of the unit expands the space of material stacking and transshipment.
Flexible mobility and convenient transportation; The wheeled mobile crushing station has a high chassis and small turning radius, which can be used in rough and rough road conditions. Saving time for a quick entry site.

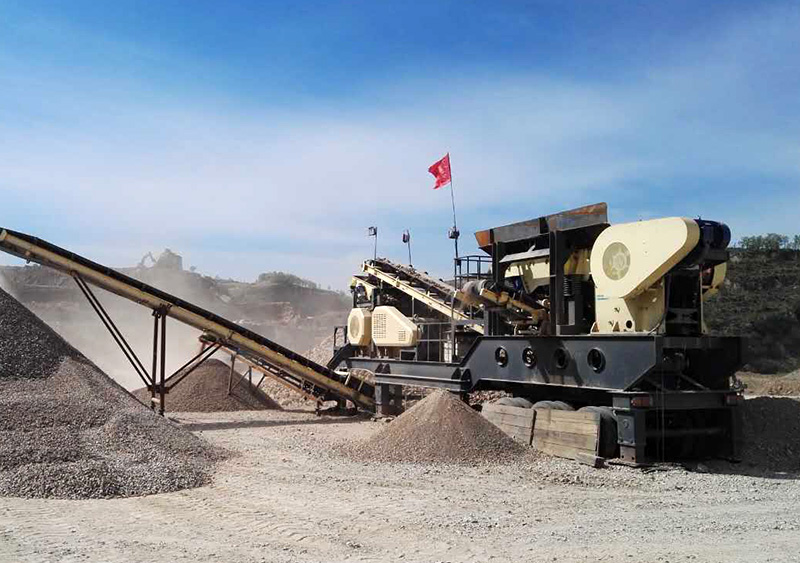

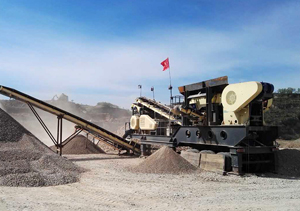

The production of crushing in material producing area reduces the cost of material transportation;. The wheel - type mobile crushing station, the material is broken in the field, saving the material mining transportation to be broken, the middle part of the treatment.
The production efficiency is high, the broken sieve is formed once; According to the customer's requirement of material type and product in the process, it can provide flexible process scheme configuration to meet the demands of mobile crushing, mobile screening and other requirements, so as to minimize the cost.

Adaptability of materials and flexible configuration of equipment; For coarse crushing and sifting system, a single unit can operate independently and the unit can be configured for joint operation. The hopper side provides the flexibility of various configurations for the distribution of sieving materials.
Low maintenance cost; Wheel - type jaw type mobile crushing station with multi - series jaw crushers enjoys high crushing efficiency, reliable and stable quality, the maximum range of coarse, medium and fine material crushing screening requirements.

Working Principle

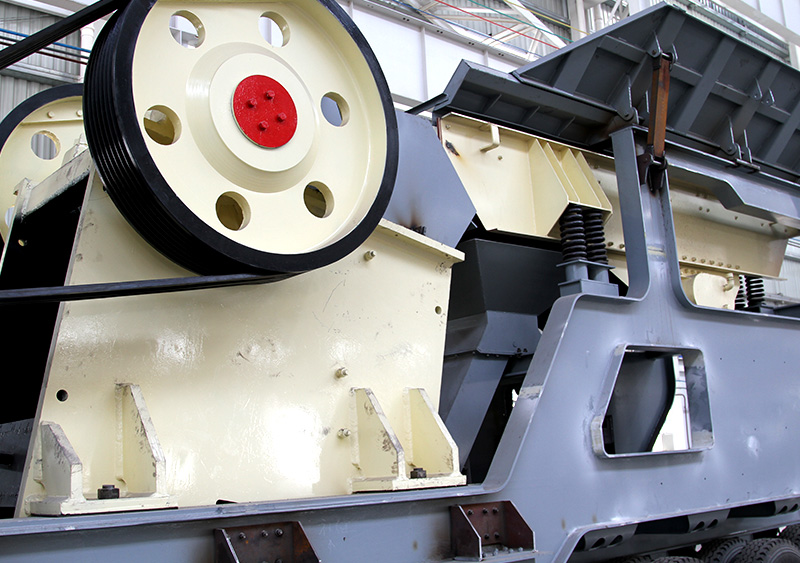

The crushing method of Rubber-tyred mobile jaw crusher is curled squeeze. The motor drive belt and pulley, through the eccentric shaft make the movable jaw plate move up and down. when the movable jaw plate rise and the angles between toggle plate and movable jaw plate become big, thus drive the movable jaw plate be close to the fixed jaw plate, in the meantime, the material will be multiple crushed by squeezed, twisted and ground. When the movable jaw plate do a downward movement, the angles between toggle plate and movable jaw plate become small, the fixed jaw plate keep away from movable jaw plate under the action of a lever and spring. At this moment, the crushed material will be discharged by way of its crushing cavity. As the motor turns continuously, the movable jaw plate is crushing and discharging periodically, thereby it is available to produce in quantity.
