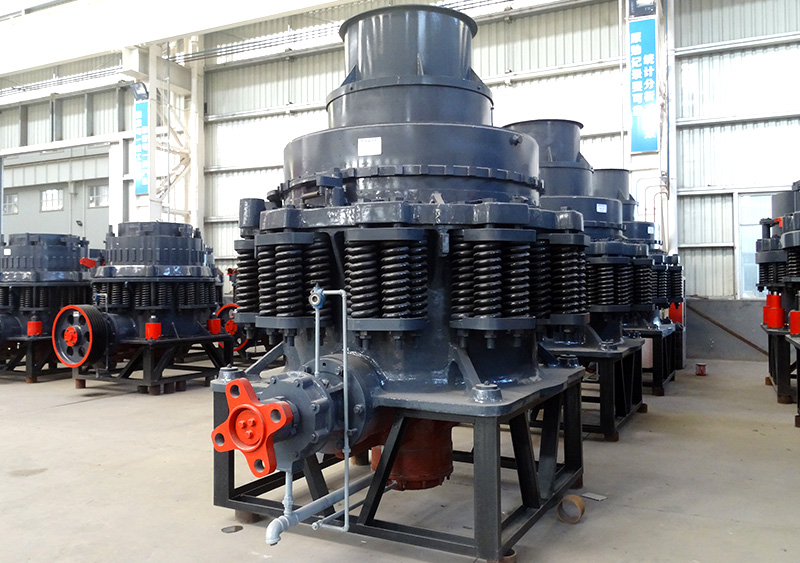

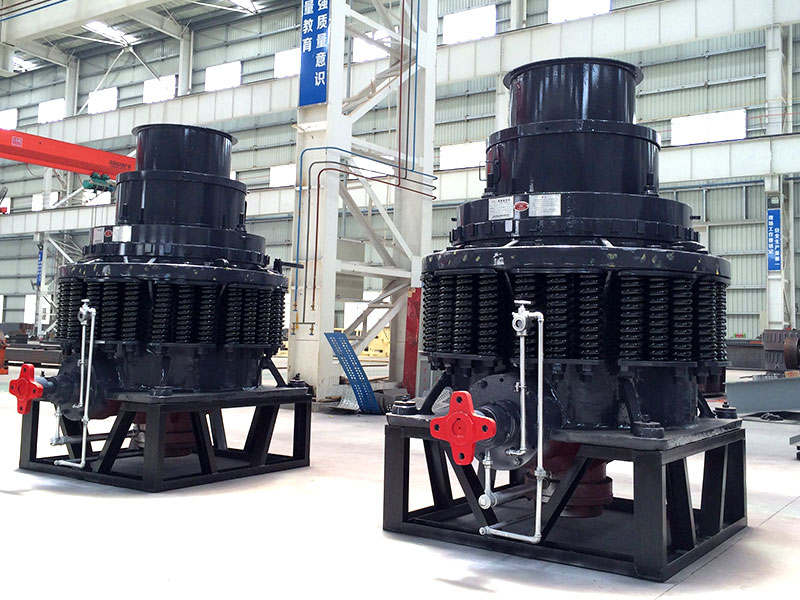

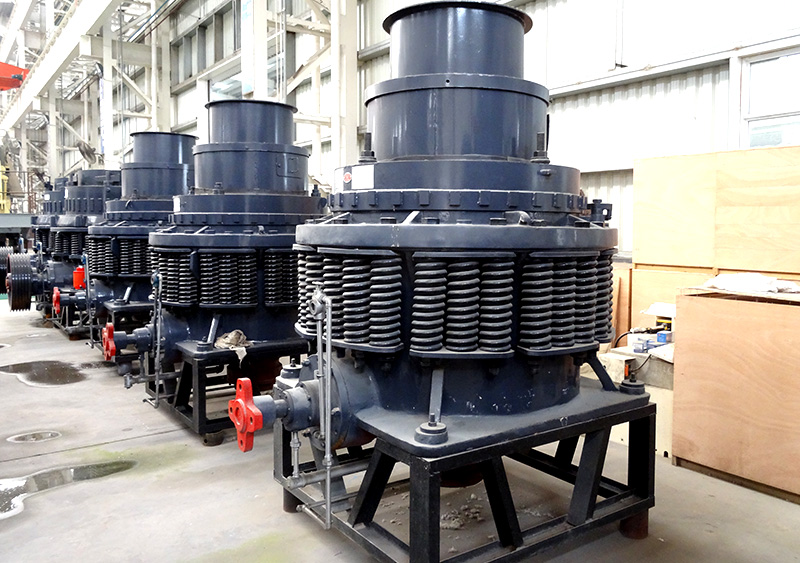

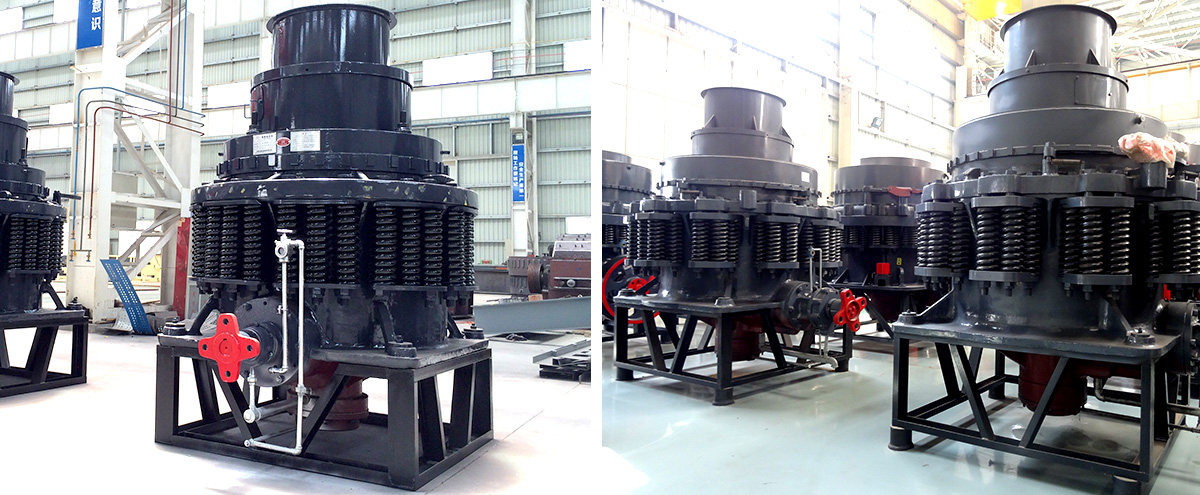

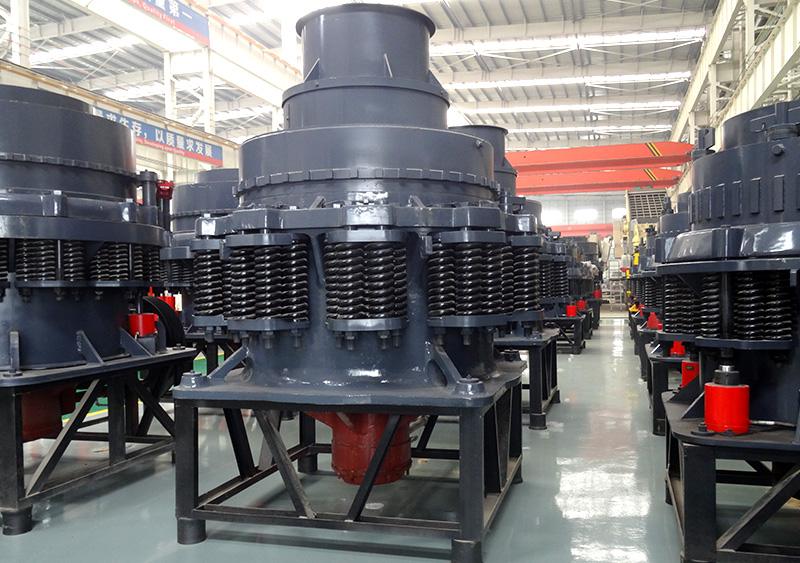

Spring Cone Crusher

This series of Fote cone crusher is made of dry oil or water sealing modes ,so that the dust can not enter into the machine and protect the lubrication grease from becoming dirty, which also prolongs the service life of the sliding bearing and thrust ball bearing and makes the machine run reliably. Spring cone crusher is suitable for crushing medium and high hardness materials. It can be applied for fine crushing and ultra-fine crushing of hard rock, ore, slag, refractory etc.

Structure :

The spring cone crusher is made up of a main frame, transmission shaft, eccentric bushing, bowl-shaped bearing, crushing cone, adjusting device, adjusting sleeve, spring etc.

Feature :

• High productivity; With the continuous rotation of the moving cone, the crushing process and the unloading process of the material are alternately carried out continuously along the work surface.
• Uniform product grain size, cubic shape, the working surface of the moving cone has uniformly abrasion.
• The insurance device greatly reduces the downtime.
• .The main frame, using high strength alloy steel casting, precision forging processing, durable, suitable for crushing hard material, light weight;
• The adjustment device can adjust the breaking material granularity quickly.
• The spring is used for protecting the crusher from being damaged when the materials that cannot be crushed go into the crusher.
• With a complete lubrication system, when the temperature is too high or the flow is too slow, the cone crusher will automatically shut down.
• Long service life and good applicability.
