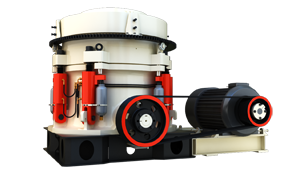

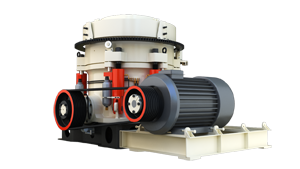

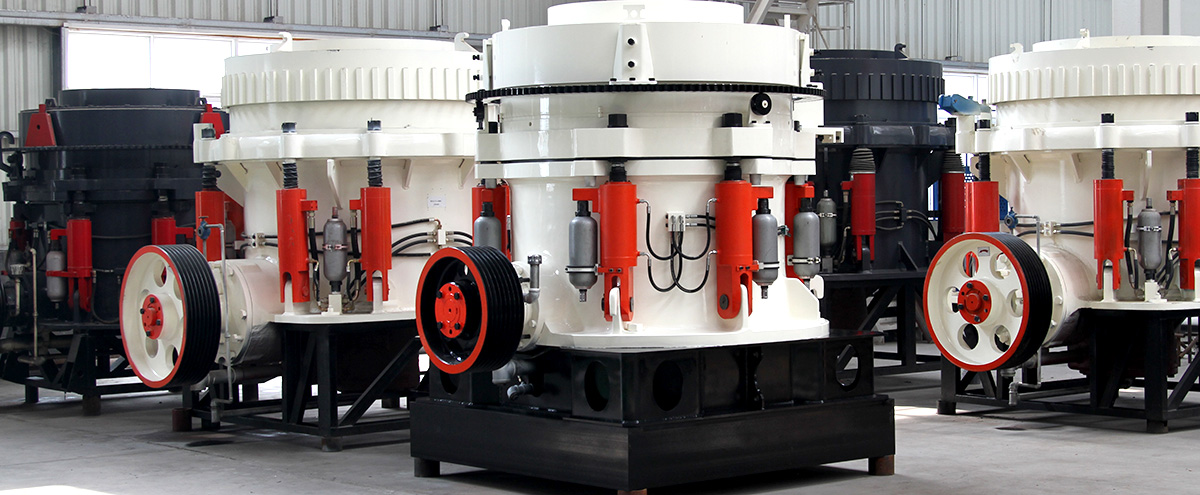

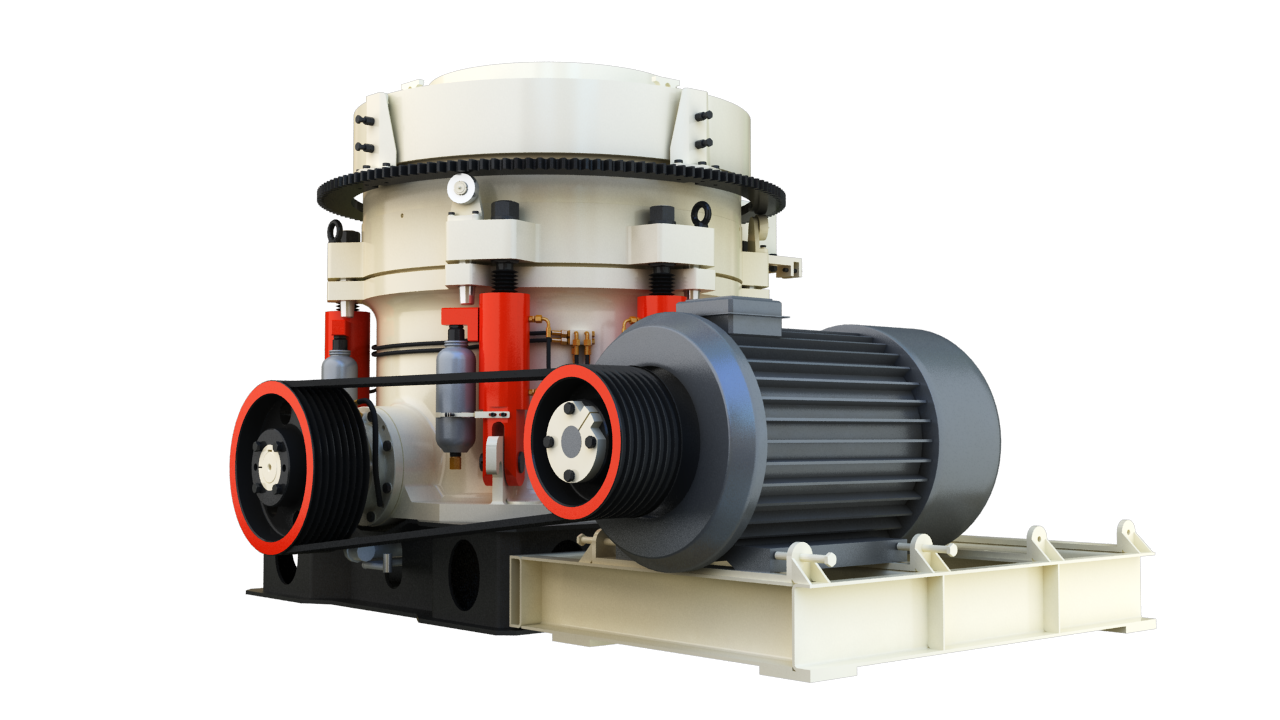

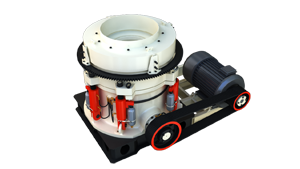

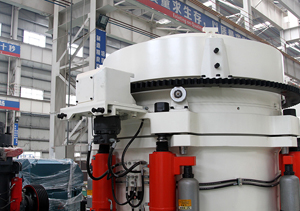

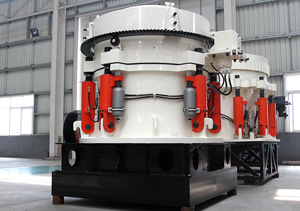

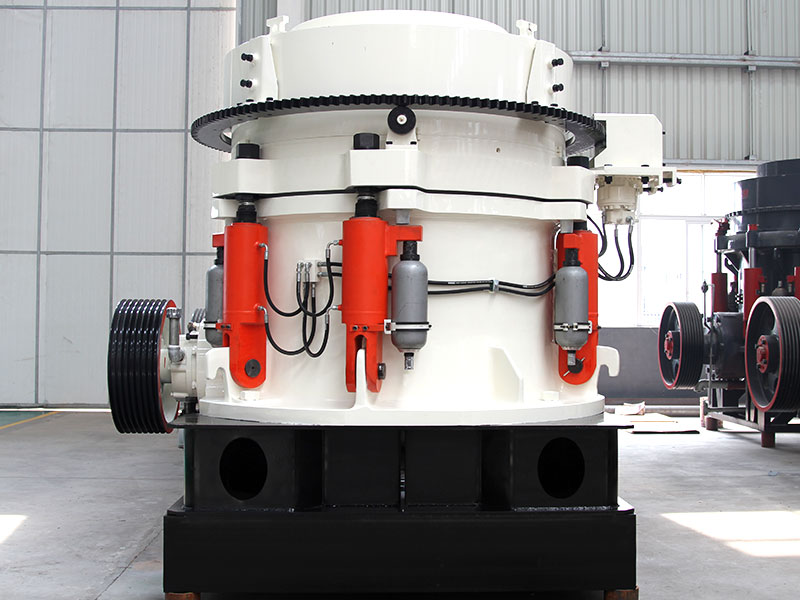

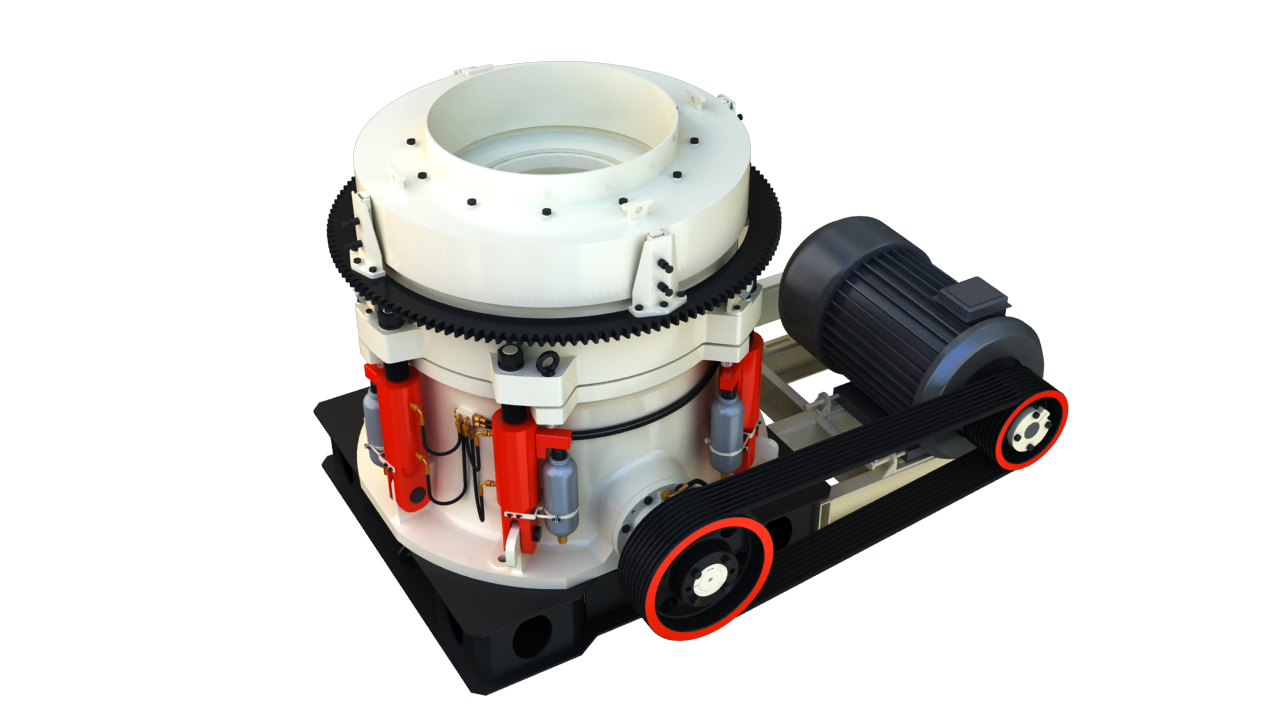

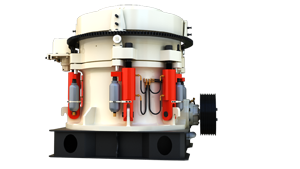

HP Series Multi Cylinder Hydraulic Cone Crusher

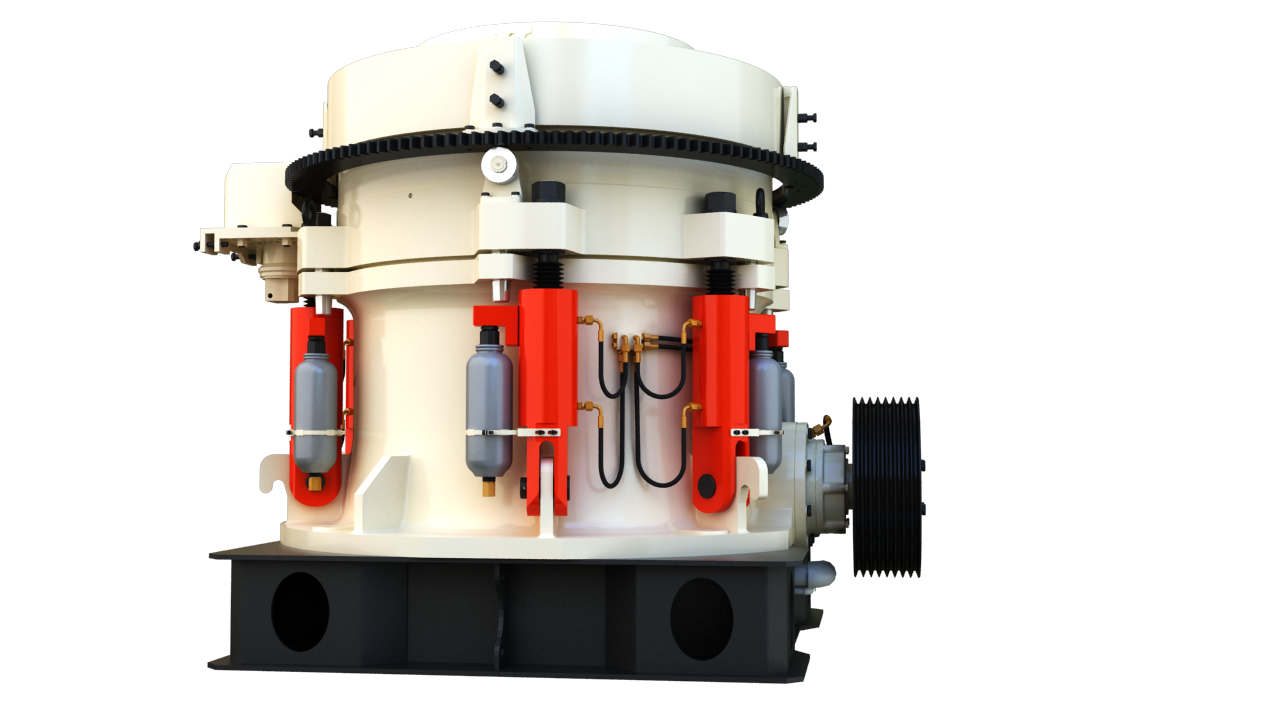

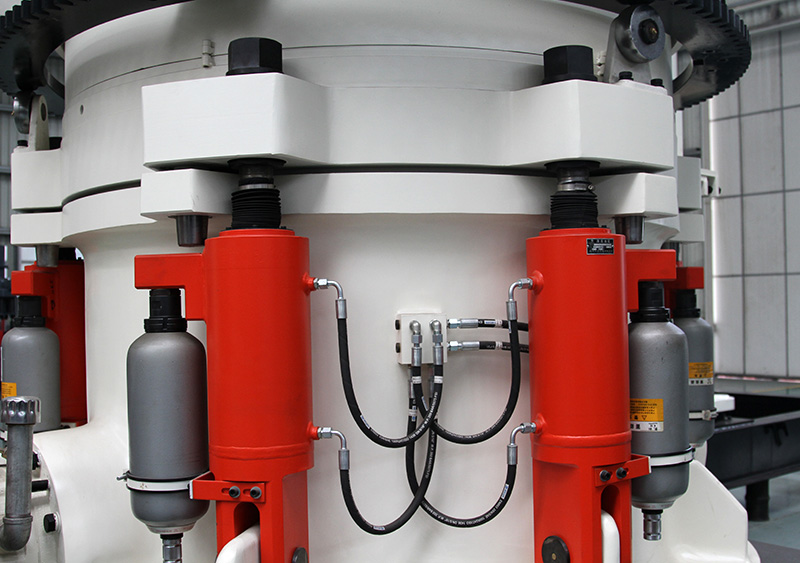

Multi cylinder hydraulic cone crusher is developed on the basis of spring cone crusher, its basic structure is similar to the spring cone crusher. The difference between them is that the original 10-16 groups of springs are replaced by 10-16 safety cylinders. Multi-cylinder hydraulic cone crusher is composed of cylinder, piston, bracket and bolt. The cylinder is separated by the piston into A and B chambers.The HP cone crusher uses the hydraulic system to adjust the breaker gape size, the hydraulic system can effectively guarantee the safe operation of the equipment. When there are sundries in the crushing chamber, the hydraulic system can make the movable cone automatic back, when discharged, the system enables the automatic reset back and maintain the original discharge port place to work.

Performance Characteristics

• Special crushing cavity; The machine adopts the special crushing cavity designed by the principle of intergranular lamination and the rotational speed matched with it to replace the traditional single particle crushing principle to realize the selective crushing of the material and the uniform crushing granularity.

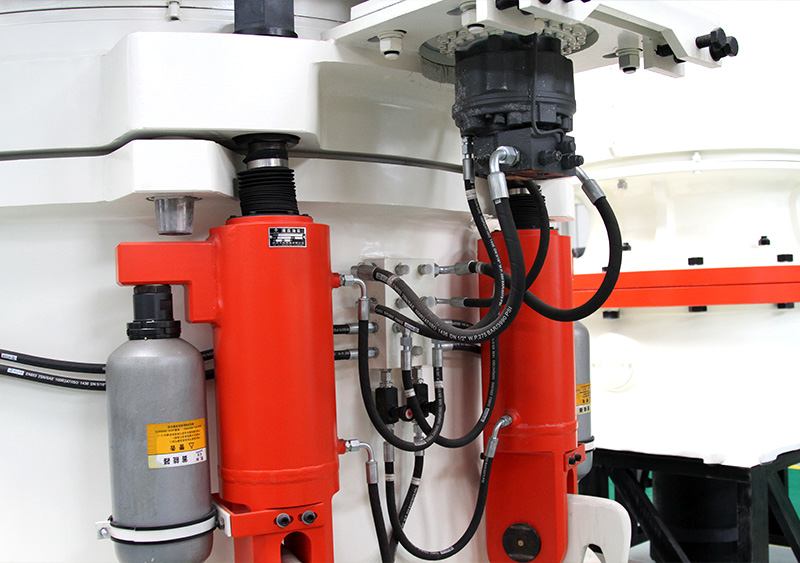

• low maintenance cost; Two-way iron release hydraulic cylinder can let tramp iron smoothly through the crushing chamber, and in the event of tramp iron and instantaneous stuffy machine, will realize hydraulic lift and automatic discharging, avoided the operation of downtime maintenance.
• Good performance Because the hydraulic device is implemented in insurance, adjustment and locking, and the production practice shows that the hydraulic cone crusher has good performance. But this kind of crusher is compared with the single cylinder, the structure is more complicated, the manufacturing time is higher than the single cylinder.
